Semiconductor Laser

Switch SOA Overview — Butterfly Package Switching / Shutter SOA Driver Module The laser diode driver consists of four sections: LD bias, modulation port, back PD current monitor and temperature stabilizer. It is suited for 14-pin butterfly packaged SOA, which works in switching mode. The switching SOA is simply controlled by LVTTL signal and […]

Switching / Shutter SOA Butterfly Package Driver Module, for Thorlabs ...

ST-915B — ST-915B Lumentum (JDSU) 140 W Fiber-Coupled Diode Pump Laser Module The ST Series fiber-coupled diode pump module offers up to 140 W output through a 106.5 μm fiber. It uses a high-power proprietary chip optimized for reliability at high peak power. The ST Series leverages a long history of fiber-coupled […]

ST-915B Lumentum (JDSU) 140 W Fiber-Coupled Diode Pump Laser Module

finisar-40g-vsr-tosa — 40Gbps Transmitter, Finisar MZ02-09-0-0000 Series, Very Short Reach TOSA Finisar’s 40Gbps Transmitter/TOSA, comprises of a CW DFB chip, an InP Mach-Zehnder Modulator(MZM), an electrical 40Gbps modulator driver, thermo electric cooler and monitor photo diode. The form factor is a box with DC pins and differential GPPO inputs. The specifications are […]

40Gbps Transmitter, Finisar MZ02-09-0-0000 Series, Very Short Reach TOSA

LC96A1060 — II-VI (Oclaro) Pulsed and CW 1060nm High Power Laser Diode Module LC96A1060 Features High output power, up to 400mW kink free CW or 1.3W pulsed peak 1030nm, 1060nm or 1070nm Short pulse operation of 5ns-500ns Polarization maintaining single-mode optical fiber Internal thermoelectric heat pump and monitor diode Hermetically sealed 14-pin […]

LC96A1060, II-VI (Oclaro) Pulsed and CW 1060nm High Power ...

lim400-resize — 40Gbps Transmitter, Cyoptics LIM400, Electro-absorption Modulated Laser, Integrated EML Module The CyOptics (formerly Apogee Photonics, now Broadcom Limited) LIM400 Laser-Integrated Module is a compact, high-performance device used in 40Gb/s long-reach data transmission. The LIM400 enables ITU and MSA compliance with a dispersion penalty of less than 1dB over 40ps/nm of […]

40Gbps EML Module, Cyoptics LIM400, Electro-absorption Modulated Laser

TTX1994 — EMCORE’s Tunable Extended Cavity Laser Technology EMCORE’s proprietary Tunable ECL (Extended Cavity Laser) technology delivers superior optical performance. EMCORE ECL products consistently provide industry-leading output power, Side Mode suppression Ratio (SMSR), narrow linewidth, low optical noise, and high-frequency accuracy important for advanced systems design. Product Overview The TTX1994 ITLA […]

Tunable Lasers, ITU DWDM Grid, C Band, Emcore TTX1994 ITLA, ...

21130212 — JDSU Tunable lasers are a key component in today’s agile transmission modules that are designed to support the rapid deployment of next generation Internet Protocol bases voice, data and video services. The 5205-T integrabel tunable laser assemblies (TOSA based ITLA) are tailored for the needs of advanced modules that require […]

JDSU 5205-T Series, ITLA, 50GHz 89CH DWDM Tunable Laser Source ...

TL5000 — The Oclaro LambdaFLEXTM iTLA is a high performance continuous wave (CW) tunable laser source for use in the C-band window covering 1528nm to 1563nm. Based on the OIF iTLA standard, the laser and control electronics are pre-mounted on a dedicated circuit board for easy production installation. The iTLA features variable […]

Oclaro TL5000 Series, 50GHz 89CH or 96CH DWDM Tunable Laser ...

NLK1551SSC — The NEL NLK1551SSC directly-modulated laser (DML) is a cost-effective solution for 10 Gb/s digital transmission of up to 50 km using traditional intra-city fiber links. The package contains a high-speed DFB laser chip, thermoelectric cooler, thermistor, optical isolator, and a rear-facet monitor photodiode for external optical power control. Applications SONET/SDH […]

10Gbps DML DFB Laser, NEL (NTT) NLK1551SSC, 1550nm, Direct Modulated ...

Pump — DESCRIPTION The pump laser driver consists of three sections: LD bias, back PD current monitor and temperature stabilizer. It is suited for 10-pin or 14-pin butterfly packaged pump laser or equivalent. A 4.3-inch touch screen make it very easy of use for green hand, and the RS232 serial comm. port […]

Butterfly Packaged Pump Driver, Touch Screen, Power and TEC Tunable

E2560 Series — The E2560-series EML is designed for 10 Gb/s DWDM or TDM transmission applications. The EML integrates a CW laser with an electro-absorptive modulator in the same semiconductor chip and are an extension of CyOptics’ existing E2500-series of devices. These devices can replace external modulators that are often bulkier, more expensive, […]

10Gbps EML Module, CyOptics E2560 Series, Electro-absorption Modulated Laser, C-band

fld5f20np-overview — The Modulator Integrated DFB Laser (MI DFB Laser) has an electro-absorption modulator monolithically integrated with a conventional Distributed Feed-Back (DFB) laser. The modulation voltage is applied to the modulator section while the laser section operates CW allowing extremely low wavelength chirping. Extinction ratios of more than 10 dB can be […]

10Gbps EML Module, Eudyna FLD5F20NP, C-Band Electro-absorption Modulated Laser

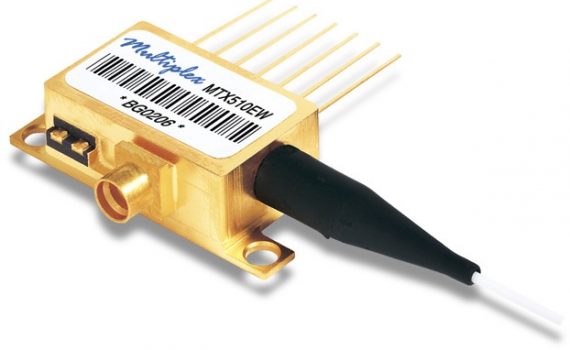

mtx510ew-overview2 — The MTX510EW electro-absorption modulated laser (EML) module consists of a multi-quantum-well DFB laser device with 1550nm nominal emission and a monolithically integrated electro-absorption (EA) modulator in a 7-pin, hermetically-sealed package with a GPO connector. State-of-the-art, epoxy-free laser-welding is utilized. The laser module also contains a thermoelectric cooler and a monitor […]

10Gbps EML Module, Multiplex MTX510EW, C-Band Electro-absorption Modulated Laser

mtx310ew-overview — The MTX310EW electro-absorption modulated laser (EML) module consists of a multi-quantum-well DFB laser device with 1310nm nominal emission and a monolithically integrated electro-absorption (EA) modulator in a 7-pin, hermetically-sealed package with a GPO connector. State-of-the-art, epoxy-free laser-welding is utilized. The laser module also contains a thermoelectric cooler and a monitor […]

10Gbps EML Module, Multiplex MTX310EW, 1310nm Electro-absorption Modulated Laser

agere-d1861a-overview — The 1861 directly-modulated laser (DML) is a cost-effective solution for 10 Gb/s digital transmission of up to 60 km using traditional intra-city SMF-28Ô single-mode fiber links. The 1310 nm wavelength eliminates the concern about dispersion control over most installed intra-city fiber plants. The package contains a high-speed DFB laser chip, […]

10Gbps DML Module, Emcore or Agere 1861 Series, 1310nm, Direct ...

finisar-s7500-btf — Finisar’s S7500 tunable laser incorporates a monolithic InP chip that integrates a tunable MG-Y laser with a semiconductor optical amplifier (SOA). The MG-Y (Modulated Grating Y-branch) laser is an electronically tuned device that can address any wavelength in the C-band. Since no mechanical or thermal adjustments are necessary, channel switching […]

Wavelength Tunable Laser, Finisar S7500 / F7500, C band, High ...

DM80-01-Overview — 10Gbps Telecom CML Transmitter, Finisar DM80-01 Series, C Band ITU Grid, Direct Modulated Laser Finisar’s DM80-01 butterfly transmitter module employs proprietary Chirp Managed Laser (CML) technology and has been specifically designed to transmit 10Gb/s data over physical distances up to 120km. The module is comprised of a directly-modulated DFB laser […]

10Gbps Telecom CML Transmitter, Finisar DM80-01 Series, C Band ITU ...
