40Gbps LiNbO3 Modulator Driver, Centellax OA4SMM5, Single Input RF Amplifier
The OA4SMM5 is a small high performance broadband 40Gb/s Electro-Absorption and Lithium Niobate optical modulator driver amplifier with low jitter, 3.3V amplitude, and excellent gain and group delay flatness to 45GHz. The driver is designed for electro-optical test equipment and SONET OC-768 / STM-256 optical modulator driver applications.
Product Highlights
• 3.3Vp-p output swing
• 0.5ps added RMS jitter
• 6ps rise / fall time
• 20dB gain to 45GHz
• 900mW power dissipation
• Size: 0.77 x 1.19 x 0.26 inch
• Standard GPPO RF connectors
Application
The OA4SMM5 is offered in a small modularized package with excellent performance, and is intended for transponder integration. The OA4SMM5 has gain and power levels that are ideally suited for driving 40G electro-absorption modulators. The driver has low power dissipation, ample drive signal, low added jitter, fast rise/fall times, and is easy to use with simple bias voltages. The OA4SMM5 can be biased from a standard 5V supply.
Specification
| Parameter | Unit | Min. | Typ. | Max. |
| Data Rate | Gbps | – | 43 | – |
| 3dB Bandwidth | GHz | – | 40 | 45 |
| P3dB Output | dBm | – | 14.5 | – |
| Output Amplitude Swing | Vpp | 1.5 | 3.3 | – |
| Input Amplitude Swing | Vpp | 0.1 | 0.3 | 0.5 |
| Variable Gain | dB | – | 17 | – |
| Added Jitter (RMS) | ps | – | 0.5 | 0.6 |
| Rise / Fall Time | ps | – | 6 | 9 |
| Input, Output Impedance | Ohms | – | 50 | – |
| Signal Output and Couple | – | Single Ended AC Coupled |
||
| RF Port | – | GPPO Male | ||
| Operating Temperature | ℃ | 0 ~50 | ||
| Power supply* | – | DC5V, 1A (EVB) | ||
| Dimensions (L×W×H)* | mm | 150×100×15 (EVB) |
Order Information
| 1 | 2 | 3 | 4 |
| Package | Data Rate | Output Swing | RF Connector |
| E=EVB | 40=40Gbps | 3=3.3Vpp | G=GPPO |

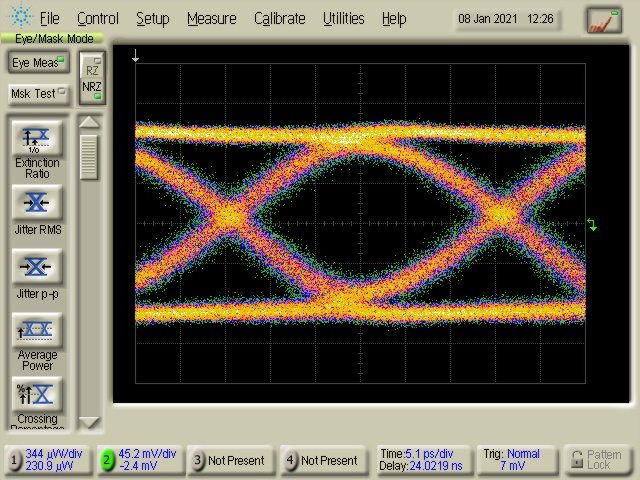

EyeDiargram (NRZ at 32Gbps)
