10Gbps Intensity Modulator, Sumitomo T.DKH1.5-10PD-ADC

10Gbps Intensity Modulator, Sumitomo T.DKH1.5-10PD-ADC t-dkh1-5-10pd-adc

10Gbps Intensity Modulator with the Features of

  • Low Drive Voltage, RF VπVoltage 5.5V@10GHz, Typ. at Single Drive Mode.
  • C and L-Band Operation.
  • Enhanced E/O Bandwidth for up to 12.5 Gb/s Modulation Speed
  • Low Insertion Loss, 5.0dB Typ.
  • Integrated Monitor Photodiode.
  • Supports Both Dual-drive and Single-drive.

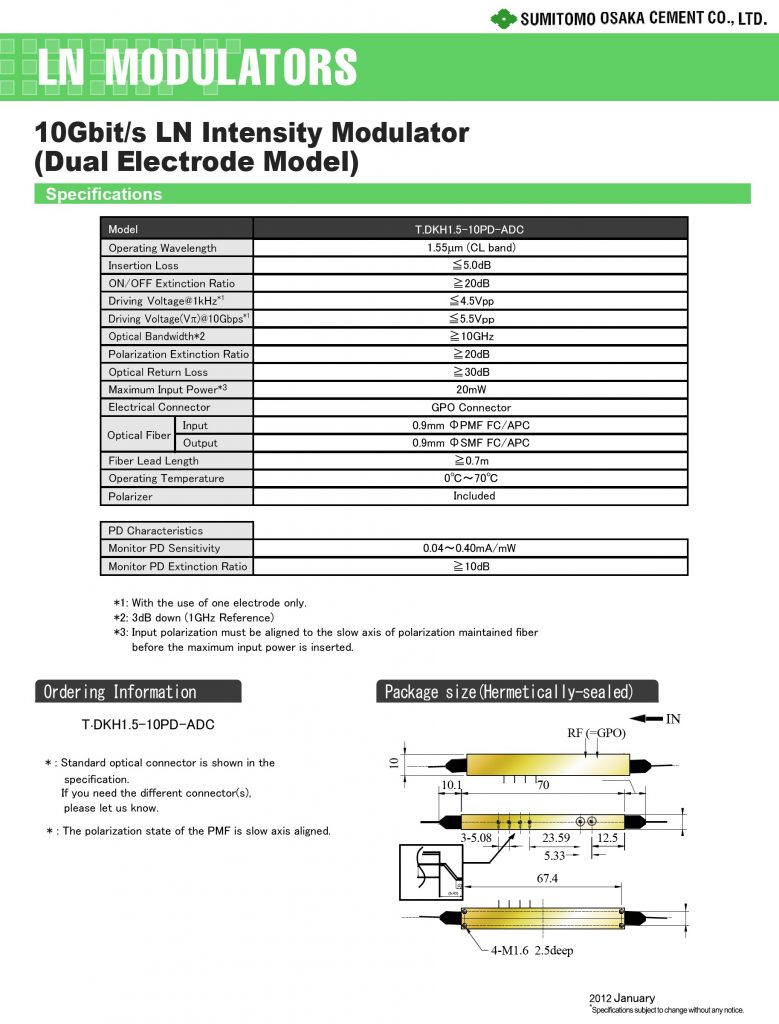

T.DKH1.5-10PD-ADC - Datasheet -mini 2025
